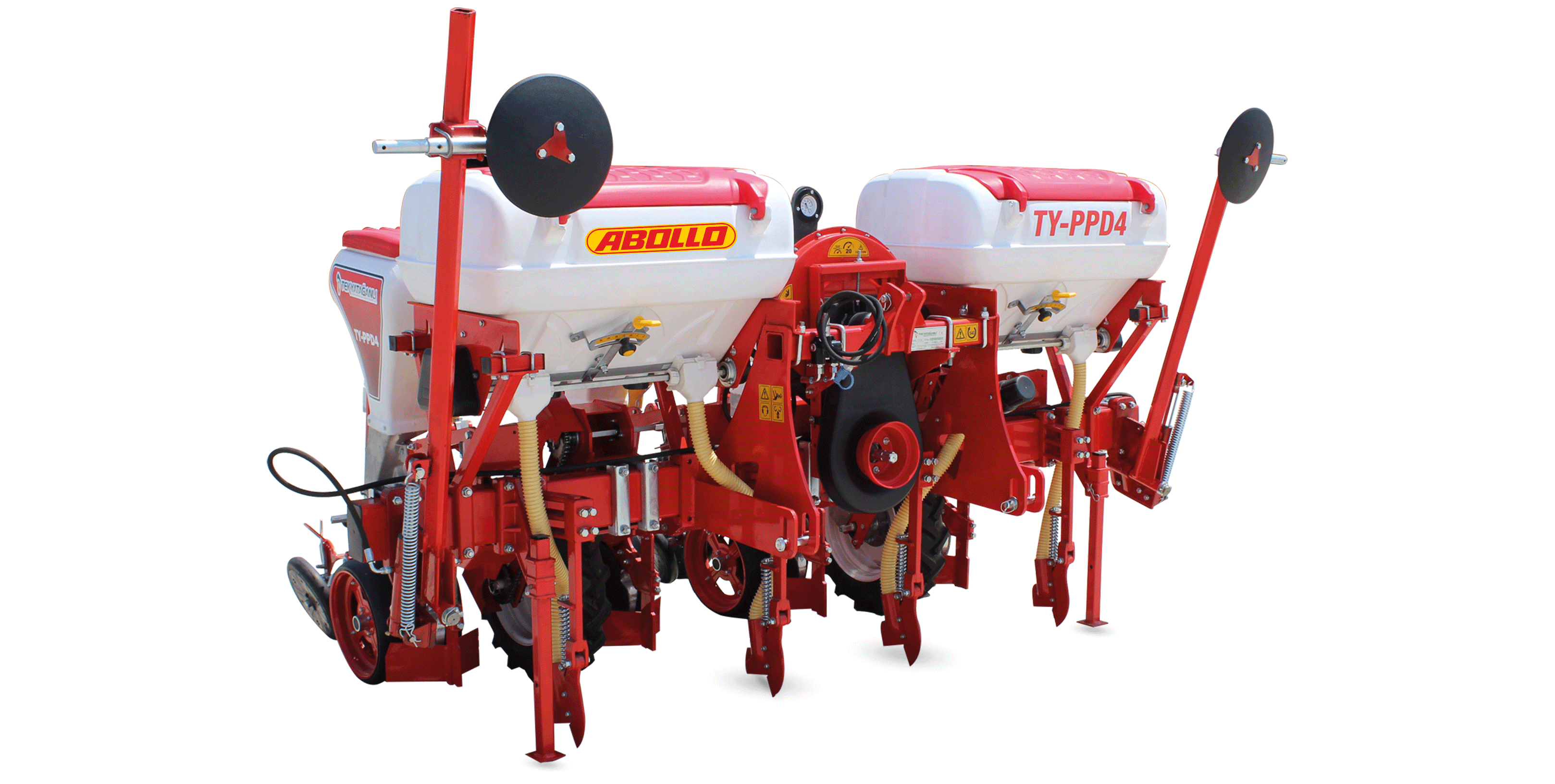

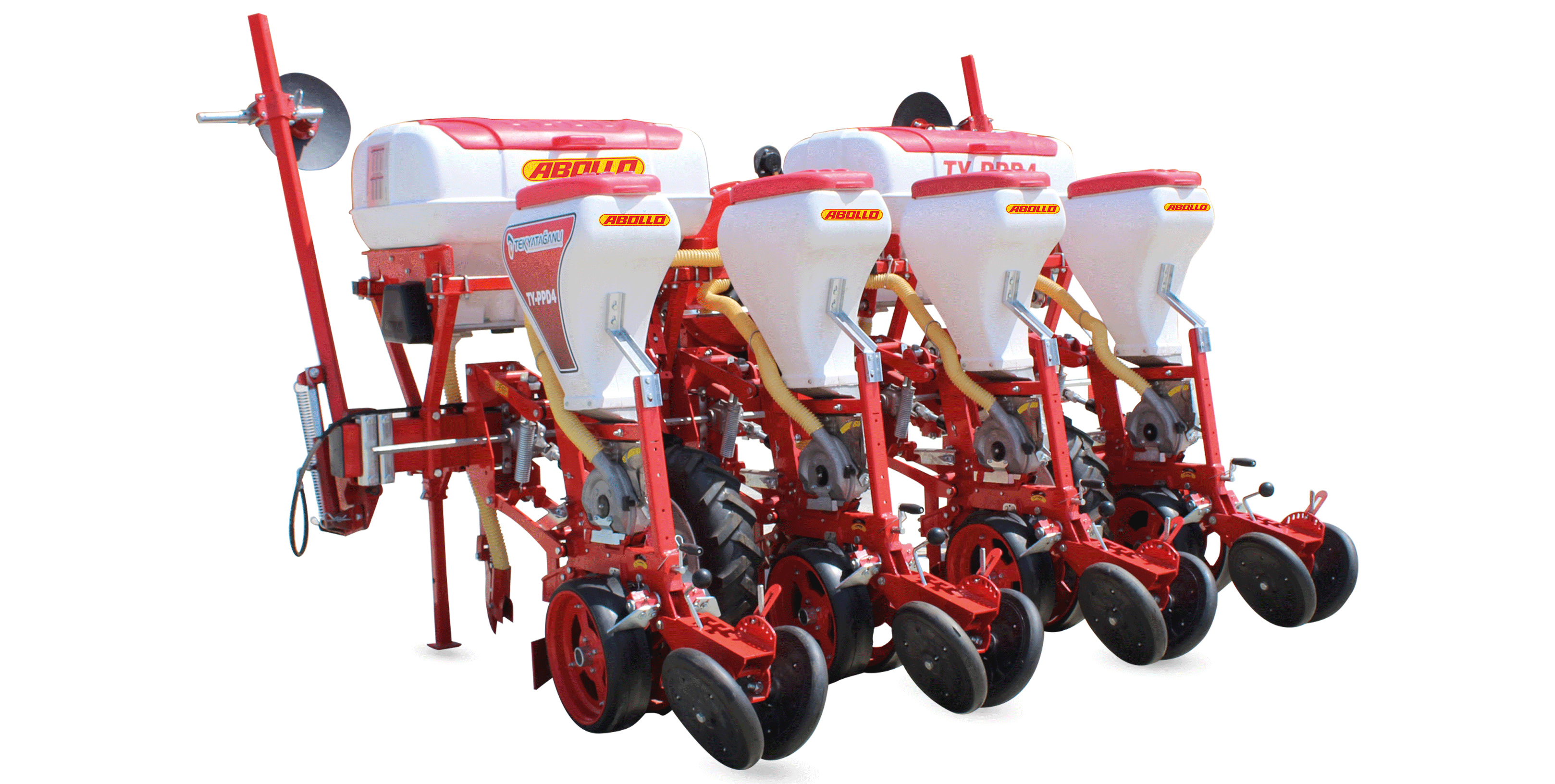

The ABOLLO PNEUMATIC PRECISION PLANTER DISC TYPE enables all kinds of seeds to be planted precisely in the desired planting field and array. Depending on demand, 4-5-6-8 array type can be manufactured. In seeder units seed bed is opened by discs. Each plant has 2 discs made of special materials. Due to the fact that the seeder units are disc type and because of the cutting discs that can be mounted in front of the chassis, this machine can work on processed or semi-processed fields where stalk residues exist. Precision sowing can be performed at the overhead distances since the wheel motion is made by the shaft mechanism to the sowing units. Precision depth adjustments can be made precisely in all kinds of soil conditions thanks to the rubber wheels on both sides of the planter units. The seed is compressed by means of the V rollers located behind the unit. The pressure and angle applied by the rear presser foot can be adjusted by springs. V printing wheels prevent formation of a upper crust in the soil. Discrete sowing units allow sowing in early tempered soil. Pneumatic seeding machines with disc arms are suitable for sowing. It does not break the tillaged field. When the seed bed is turned by the rotating discs it does not harden. It is suitable for plant development and does not bring much burden for tractor. The units can easily switch to the road and work position when requested. Different accessories can be installed on request. It is a sowing machine that provides high saving and high efficiency with high working speed and excellent performance.
Model | TY-PPD4 | TY-PPD5 | TY-PPD6 | TY-PPD8 | |
Chassis Size | cm | 290 | 300 | 430 | 600 |
Length | cm | 185 | 185 | 185 | 200 |
Weight | Kg | 810-1000 | 930-1150 | 1050-1240 | 1600-1850 |
Height | cm | 155 | 155 | 155 | 155 |
Distance Between Rows | cm | 35-90 | 35-55 | 35-90 | 35-90 |
Seed Capacity | dm³ | 30 | 30 | 30 | 30 |
Fertilizer Capacity | dm³ | 190x2 | 190x2 | 220x2 | 190x4 |
PTO Rotation | rpm | 540 | 540 | 540 | 540 |
