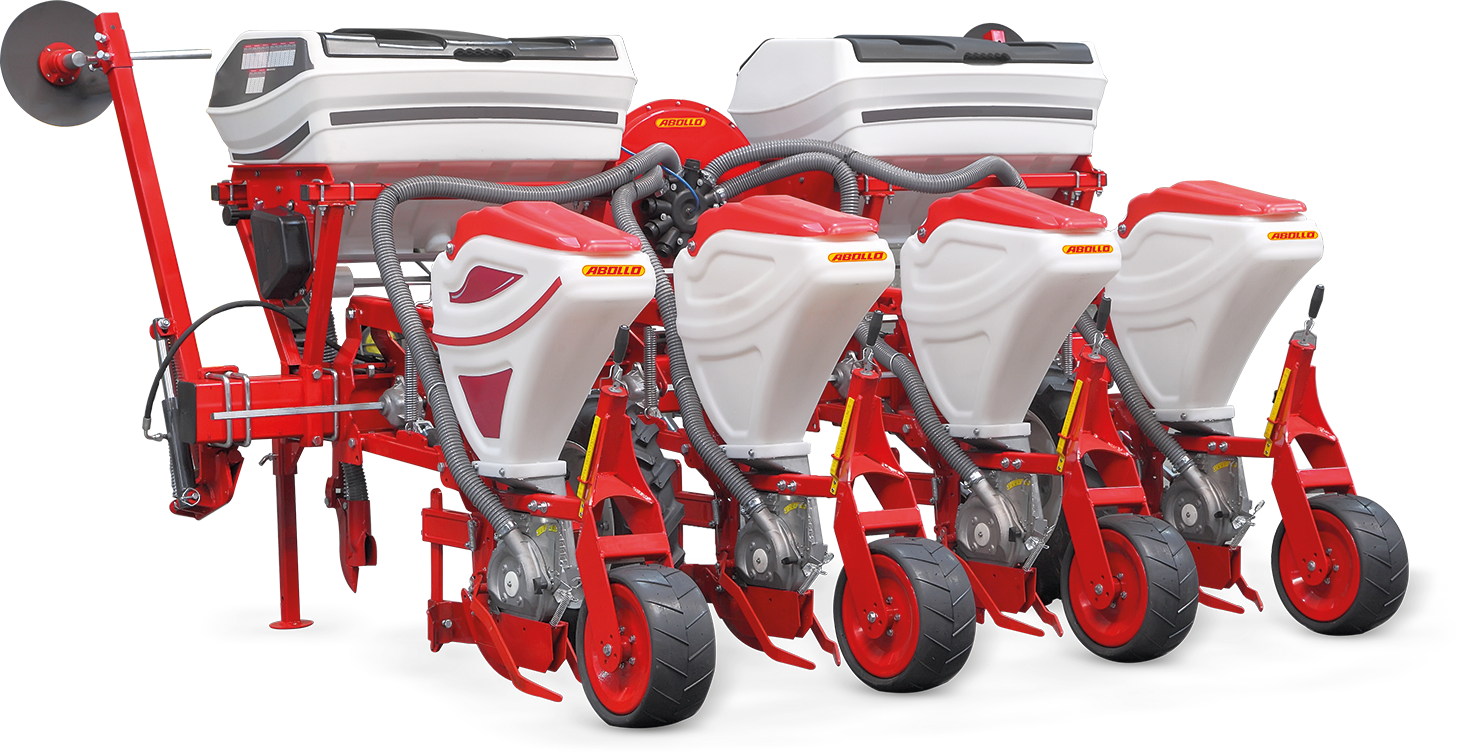

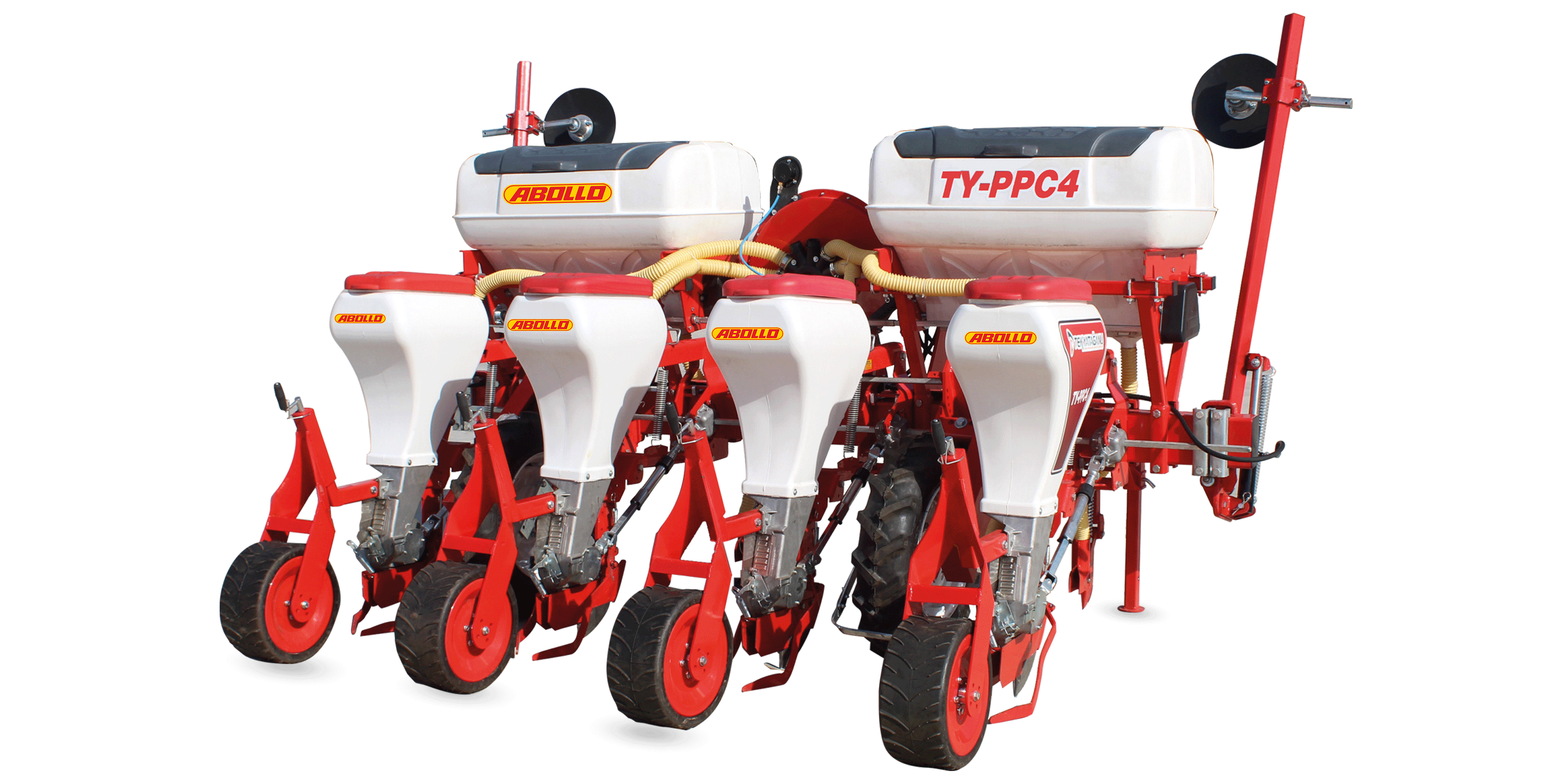

Pneumatic Precision Planter Coulter Type

The ABOLLO PNEUMATIC PRECISION PLANTER COULTER TYPE enables to plant all kinds of seeds (beet, corn, sunflower, cotton, soybean, peanut, zucchini, melon, water melon, cucumber, onion etc.) precisely at the desired planting interval and array. Depending on demand, 4-5-6-8  array type can be manufactured. Thanks to the fact that the seeding units are the ax type, they perform the sowing process successfully in all kinds of land conditions especially in the stony land. Depending on the small and large seed types, seed bed openers with ax feet can be mounted  in different sizes depending on request. Casting axes are manufactured of special alloy steel casting material which will not be easily worn. Front soil shovels are available for different purposes. sowing units such as beetroot onion are made with pre-press wheels for seeding. Thanks to the rubber wheels in the units, it is possible to plant at equal depths in any soil conditions, at desired intervals. Optionally; wide, narrow, double, etc. rear pressing wheels can be installed in different types according to the terrain conditions. The pressure applied by the rear press wheel to the soil can be adjusted with a single lever. The unit can be sowed to the desired depth in any kind of soil conditions with the depth adjustment spring press on the parallelogram system. The units can easily switch to the road and work position when requested. Easy to use, economical and long lasting planting machine.

Pneumatic Precision Planter Coulter Type  || Abollo Agricultural Machinery
Pneumatic Precision Planter Coulter Type  || Abollo Agricultural Machinery
Model   TY-PPC4 TY-PPC5 TY-PPC6 TY-PPC8
Chassis Size cm 290 370 430 600
Length cm 195 195 195 200
Weight Kg 700-800 1000 1050-1200 1450-1700
Height cm 155 155 155 155
Distance Between Rows cm 25-90 25-55 25-90 25-90
Seed Capacity dm3 30 30 30 30
Fertilizer Capacity dm3 190x2 190x2 220x2 190x4
PTO Rotation rpm 540 540 540 540
Tractor Power Hp 60 70 90 110
